Hirose

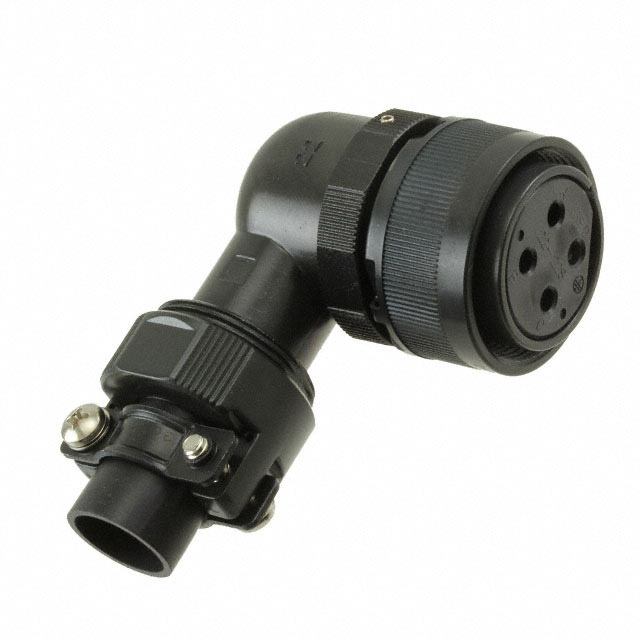

| Part Number | H/MS08A22-22S-DT12D(73) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1583 pcs | Data sheet | 1.H/MS08A22-22S-DT12D(73).pdf2.H/MS08A22-22S-DT12D(73).pdf3.H/MS08A22-22S-DT12D(73).pdf |
| Voltage Rating | - | Termination | Solder Cup |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 22-22 | Shell Material | Aluminum Alloy |
| Shell Finish | Black Chromate | Series | H/MS |
| Packaging | Bulk | Other Names | 120-0477-6-73 H/MS08A22-22S-DT12D(73)-ND H123638 |
| Orientation | N (Normal) | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | 4 (3 + PE) | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof | Features | Backshell, Cable Clamp, Coupling Nut, Ground |
| Fastening Type | Threaded | Detailed Description | 4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup Silver |
| Current Rating | - | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | 0.512" ~ 0.626" (13.00mm ~ 15.90mm) | Backshell Material, Plating | Aluminum Alloy, Black Chromate |
| Applications | - |
