Hirose

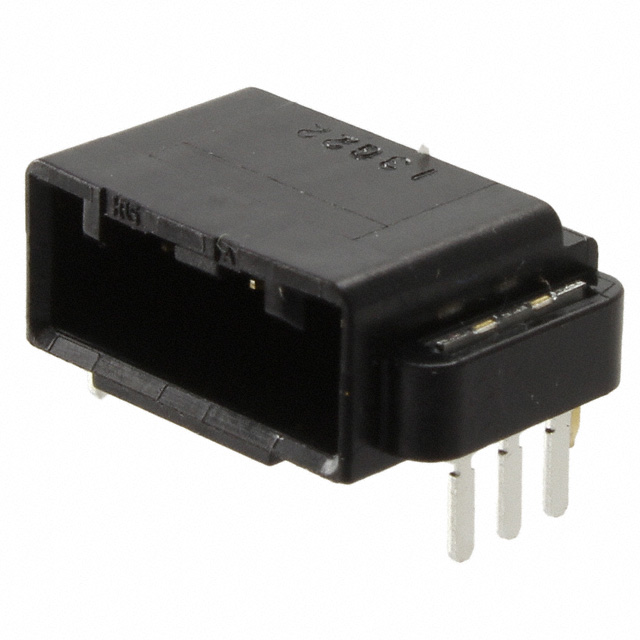

| Part Number | GT8E-6P-DS | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 2MM 6POS VERT PCB TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52965 pcs | Data sheet | GT8E-6P-DS.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | GT8E | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 758-0042-5-00 GT8E-6P-DS-ND H122075 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.276" (7.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
