Hirose

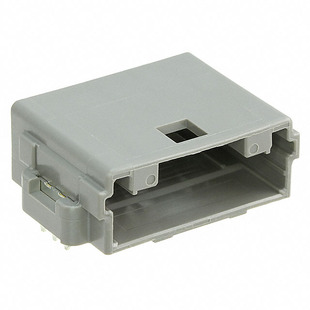

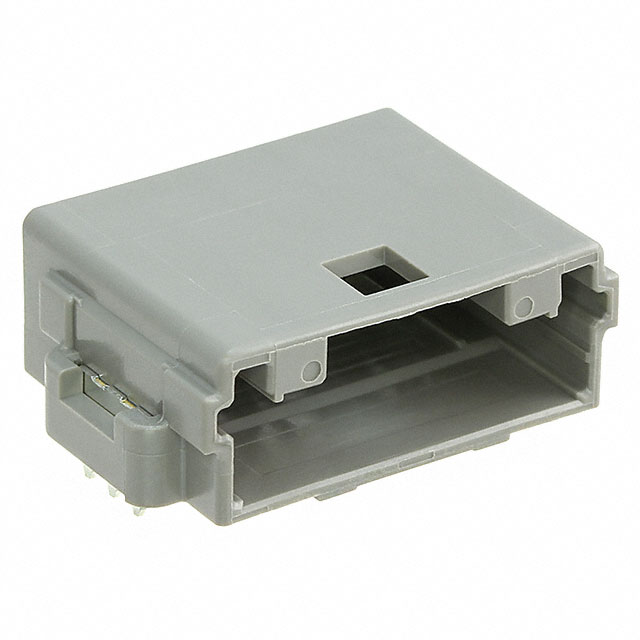

| Part Number | GT25-8P-2.2H(70) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN 8POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45119 pcs | Data sheet | 1.GT25-8P-2.2H(70).pdf2.GT25-8P-2.2H(70).pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | GT25 | Row Spacing - Mating | - |
| Pitch - Mating | 0.087" (2.20mm) | Packaging | Original-Reel® |
| Overall Contact Length | - | Other Names | H122656DKR |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.374" (9.50mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Surface Mount, Right Angle 8 position 0.087" (2.20mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.220" (5.59mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
