Hirose

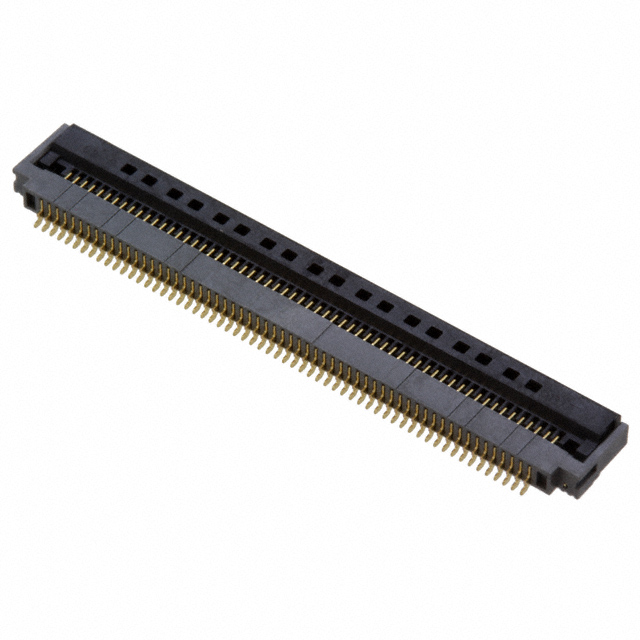

| Part Number | FH52-60S-0.5SH | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 60POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47341 pcs | Data sheet | FH52-60S-0.5SH.pdf |
| Voltage Rating | - | Termination | Solder |
| Series | FH52 | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 60 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Gray |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 1.18µin (0.030µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
