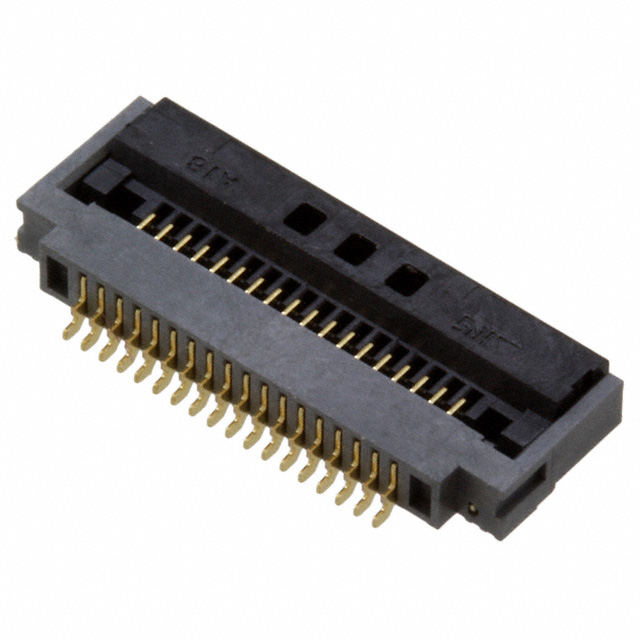

Hirose
| Part Number | FH52-18S-0.5SH(99) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 18POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26537 pcs | Data sheet | 1.FH52-18S-0.5SH(99).pdf2.FH52-18S-0.5SH(99).pdf3.FH52-18S-0.5SH(99).pdf |
| Voltage Rating | - | Termination | Solder |
| Series | FH52 | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | HFZ018CT |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 18 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Gray |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 18 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 1.18µin (0.030µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
