FH43B-25S-0.2SHW(99)

Hirose

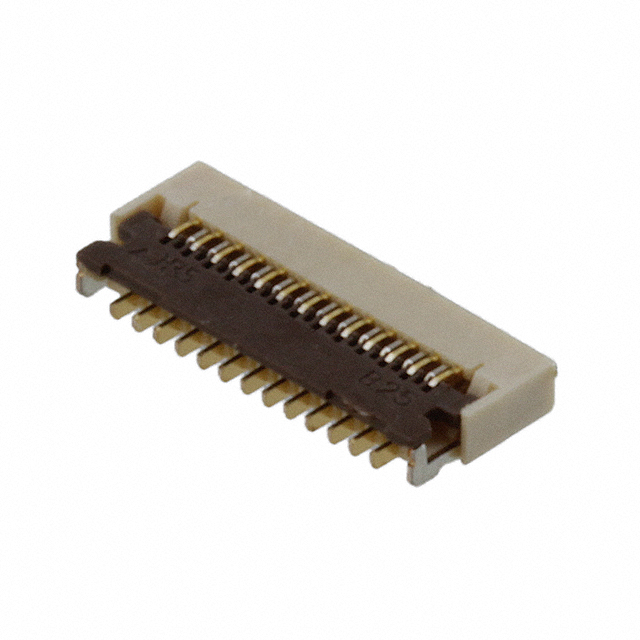

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FH43B-25S-0.2SHW(99)
Manufacturer/Brand:	Hirose
Product description	CONN FPC BOTTOM 25POS 0.20MM R/A
Datasheets:	FH43B-25S-0.2SHW(99).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	26477 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 26477 pcs

Reference Price (In US Dollars)

1 pcs: $1.391

10 pcs: $1.335

25 pcs: $1.224

50 pcs: $1.168

100 pcs: $1.113

250 pcs: $0.974

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.391

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FH43B-25S-0.2SHW(99)

Part Number	FH43B-25S-0.2SHW(99)	Manufacturer	Hirose
Description	CONN FPC BOTTOM 25POS 0.20MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26477 pcs	Data sheet	FH43B-25S-0.2SHW(99).pdf
Voltage Rating	30V	Termination	Solder
Series	FH43B	Pitch	0.008" (0.20mm)
Packaging	Original-Reel®	Other Names	H122005DKR
Operating Temperature	-55°C ~ 85°C	Number of Positions	25
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	16 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	Beige	Height Above Board	0.035" (0.88mm)
Flat Flex Type	FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.20mm	Detailed Description	25 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tabbed
Actuator Material	Polyamide (PA), Nylon	Actuator Color	Black
