Hirose

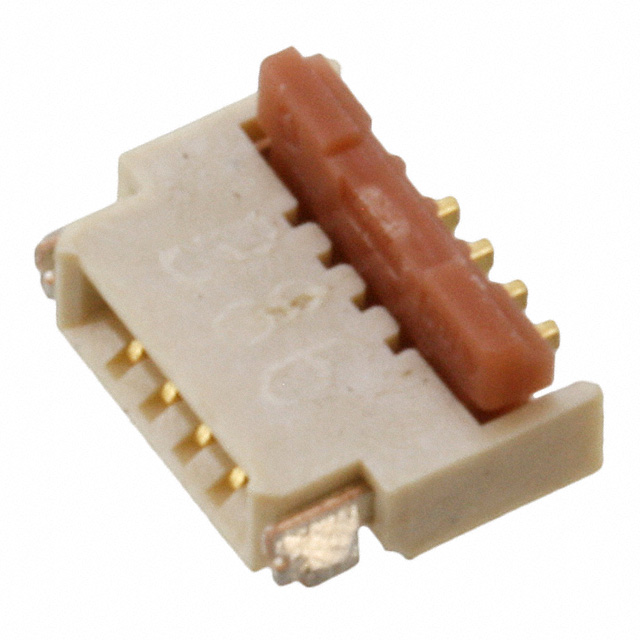

| Part Number | FH34SW-4S-0.5SH(99) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 4POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4244 pcs | Data sheet | FH34SW-4S-0.5SH(99).pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FH34SW | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 HB | Locking Feature | Rotary Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Beige | Height Above Board | 0.039" (1.00mm) |
| Flat Flex Type | FFC, FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 4 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top | Cable End Type | Tapered |
| Actuator Material | Polyamide (PA), Nylon, Halogen Free | Actuator Color | Black |
