Hirose

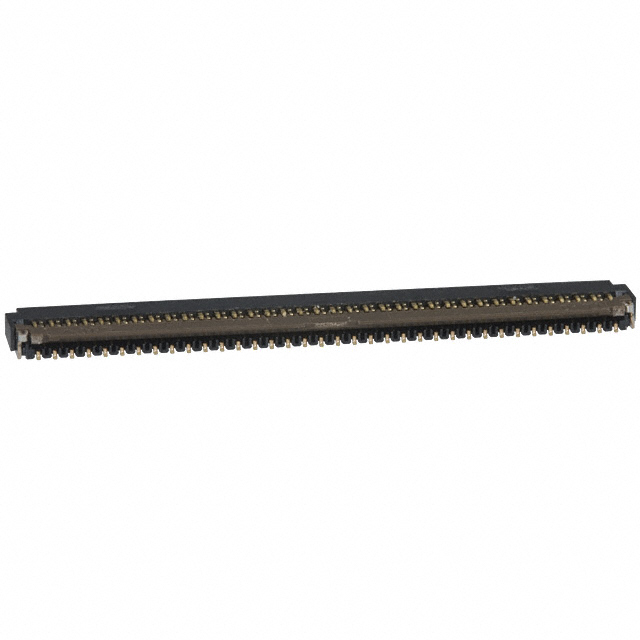

| Part Number | FH26-71S-0.3SHW(99) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 71POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3209 pcs | Data sheet | |
| Voltage Rating | 30V | Termination | Solder |
| Series | FH26 | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Other Names | 580-0202-4-99 |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 71 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Black |
| Height Above Board | 0.039" (1.00mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 71 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon |
| Actuator Color | Brown |
