Hirose

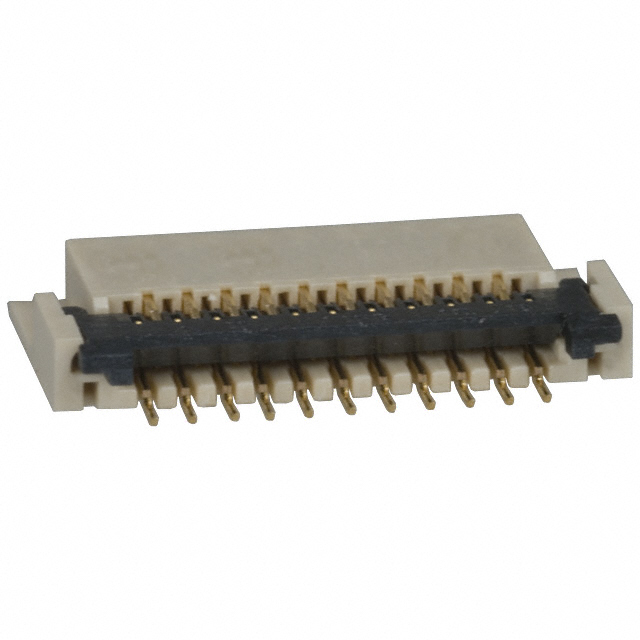

| Part Number | FH23-21S-0.3SHW(10) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 21POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93111 pcs | Data sheet | 1.FH23-21S-0.3SHW(10).pdf2.FH23-21S-0.3SHW(10).pdf3.FH23-21S-0.3SHW(10).pdf |
| Voltage Rating | 30V | Termination | Solder |
| Series | FH23 | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Other Names | 586-1314-1-10 |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 21 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Beige | Height Above Board | 0.049" (1.25mm) |
| Flat Flex Type | FPC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 21 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.3A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP) | Actuator Color | Black |
