Hirose

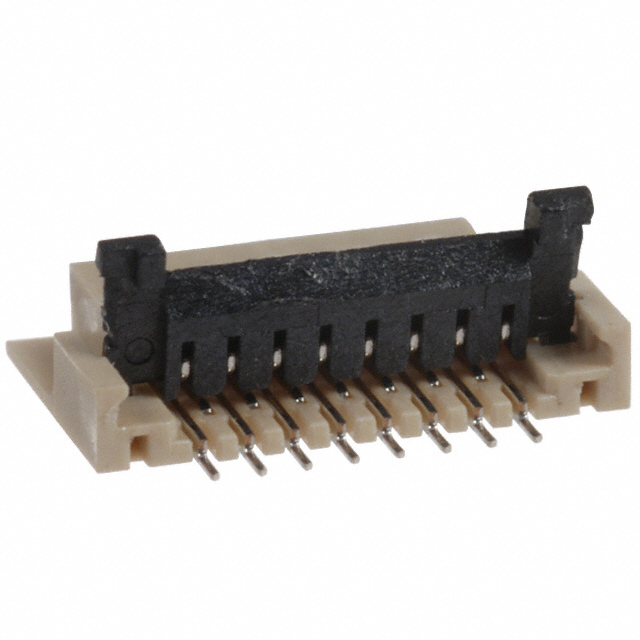

| Part Number | FH23-15S-0.3SHAW(51) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 15POS 0.30MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2741 pcs | Data sheet | FH23-15S-0.3SHAW(51).pdf |
| Voltage Rating | 30V | Termination | Solder |
| Series | FH23 | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Other Names | HFQ15TR |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 15 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Beige |
| Height Above Board | 0.049" (1.25mm) | Flat Flex Type | FPC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 15 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.3A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin-Lead | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | Black |
