Hirose

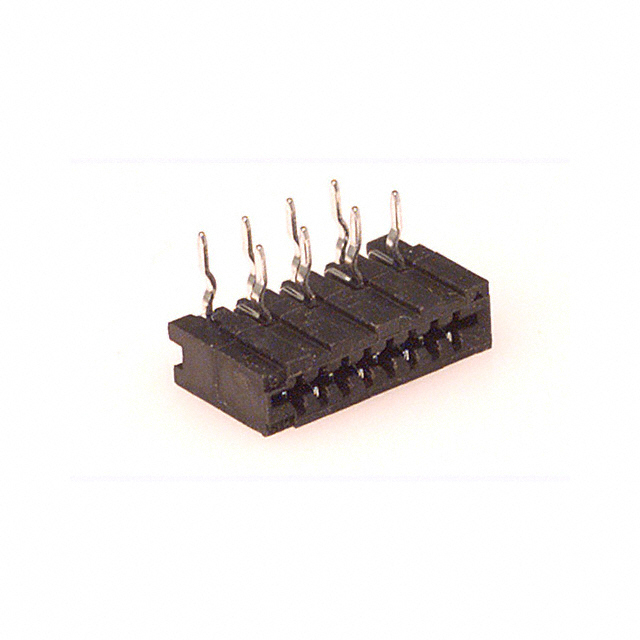

| Part Number | FH21-8S-1DS | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC FPC 8POS 1.00MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4762 pcs | Data sheet | FH21-8S-1DS.pdf |
| Voltage Rating | 50V | Termination | Kinked Pin |
| Series | FH21 | Pitch | 0.039" (1.00mm) |
| Packaging | Bulk | Other Names | *FH21-8S-1DS HFG08T |
| Operating Temperature | -30°C ~ 70°C | Number of Positions | 8 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Polybutylene Terephthalate (PBT) | Housing Color | Black |
| Height Above Board | 0.106" (2.70mm) | Flat Flex Type | FFC, FPC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 8 Position FFC, FPC Connector Contacts, Top and Bottom 0.039" (1.00mm) Through Hole, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Solder Plating | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
