Hirose

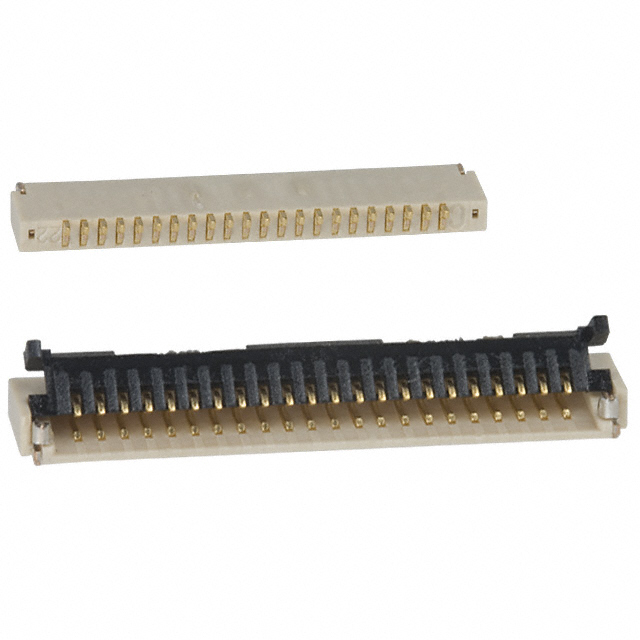

| Part Number | FH19S-22S-0.5SH(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 22POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3840 pcs | Data sheet | FH19S-22S-0.5SH(05).pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FH19S | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | *FH19S-22S-0.5SH(05) FH19S22S05SH05 HFN322CT |
| Operating Temperature | -55°C ~ 80°C | Number of Positions | 22 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Beige |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 22 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
| Actuator Color | Black |
