Hirose

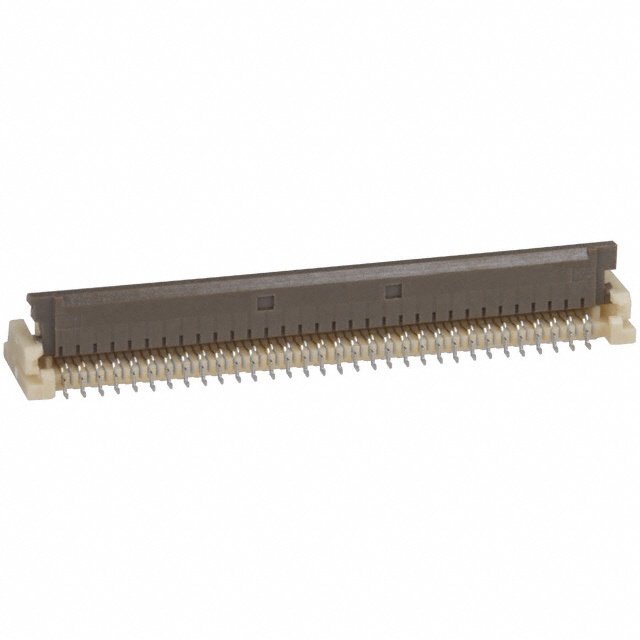

| Part Number | FH16P-64S-0.5SHW | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 64POS 0.50MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6960 pcs | Data sheet | FH16P-64S-0.5SHW.pdf |
| Voltage Rating | 60V | Termination | Solder |
| Series | FH16 | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | *FH16P-64S-0.5SHW FH16P64S05SHW HFP064CT |
| Operating Temperature | -40°C ~ 70°C | Number of Positions | 64 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon | Housing Color | Beige |
| Height Above Board | 0.118" (3.00mm) | Flat Flex Type | FPC |
| Features | Pick and Place Cap, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 64 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.4A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin-Lead | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | Brown |
