Hirose

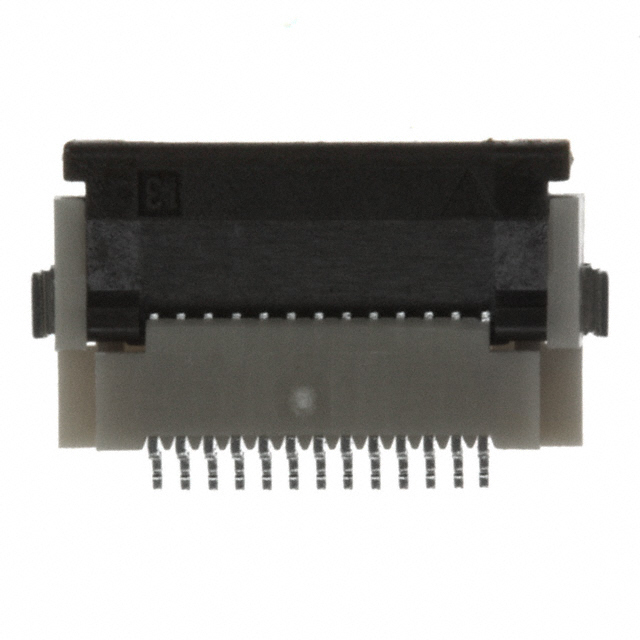

| Part Number | FH12F-13S-0.5SH | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 13POS 0.50MM R/A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6865 pcs | Data sheet | FH12F-13S-0.5SH.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FH12 | Pitch | 0.020" (0.50mm) |
| Packaging | Tape & Reel (TR) | Other Names | HFR13TR |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 13 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Polyamide (PA), Nylon | Housing Color | Beige |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.18mm |
| Detailed Description | 13 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin-Lead | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | Brown |
