Hirose

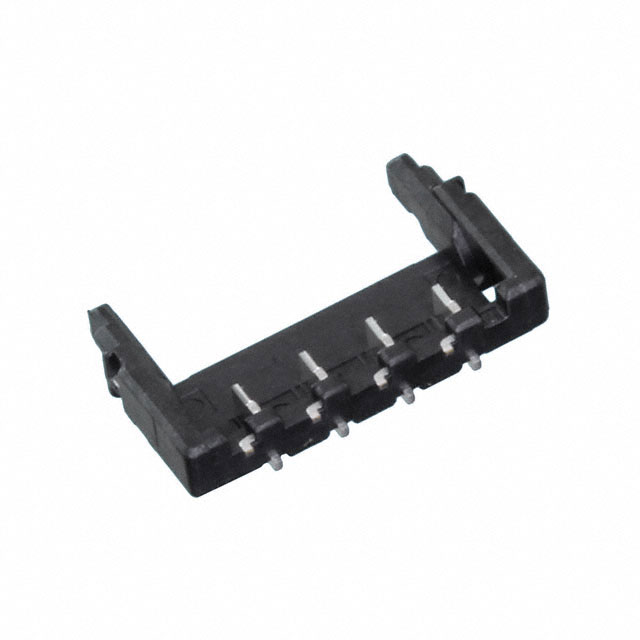

| Part Number | DF65-4P-1.7V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 1.7MM SMD TIN 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85393 pcs | Data sheet | 1.DF65-4P-1.7V(21).pdf2.DF65-4P-1.7V(21).pdf3.DF65-4P-1.7V(21).pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 3 Wall |
| Series | DF65 | Row Spacing - Mating | - |
| Pitch - Mating | 0.067" (1.70mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | H122500CT |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.065" (1.65mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Surface Mount 4 position 0.067" (1.70mm) | Current Rating | - |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
