Hirose

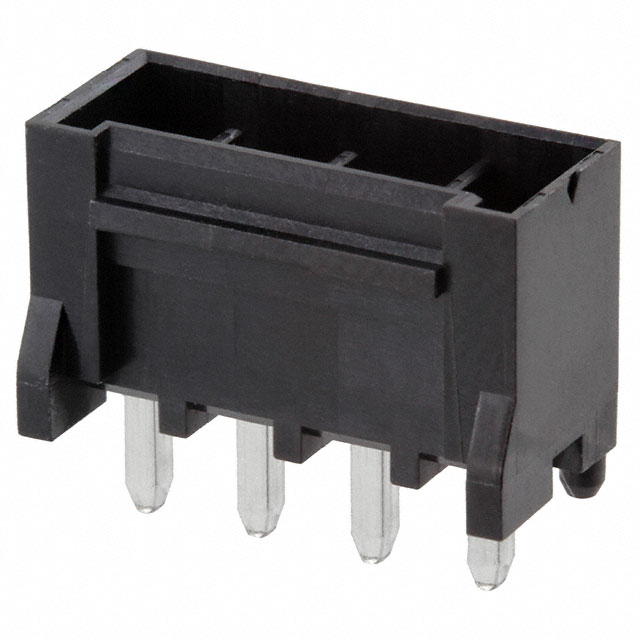

| Part Number | DF63-4P-3.96DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR VERT 3.96MM 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 194335 pcs | Data sheet | DF63-4P-3.96DSA.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | EnerBee™ DF63 | Row Spacing - Mating | - |
| Pitch - Mating | 0.156" (3.96mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | H122365 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 18.8mm |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.683" (17.35mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 4 position 0.156" (3.96mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.150" (3.81mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
