Hirose

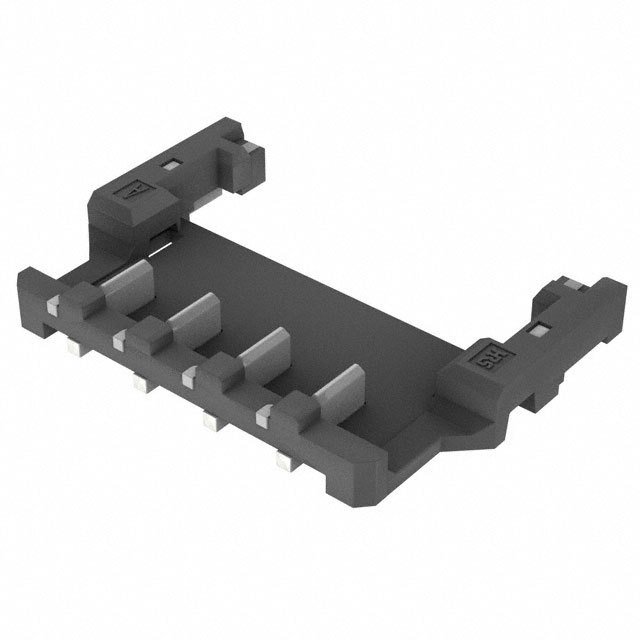

| Part Number | DF58-4P-1.2V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 1.2MM SMT 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125409 pcs | Data sheet | 1.DF58-4P-1.2V(21).pdf2.DF58-4P-1.2V(21).pdf |
| Voltage Rating | 100VDC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | DF58 | Row Spacing - Mating | - |
| Pitch - Mating | 0.047" (1.20mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | H125489CT |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.095" (2.41mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Swing Lock |
| Detailed Description | Connector Header Surface Mount 4 position 0.047" (1.20mm) | Current Rating | - |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
