Hirose

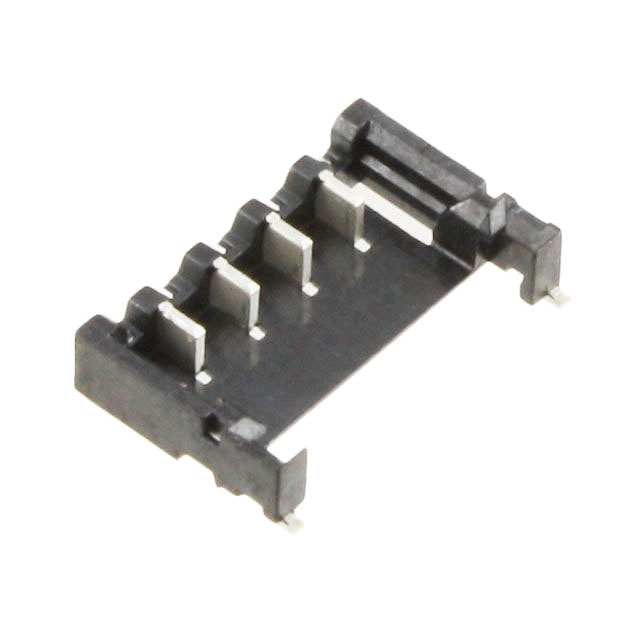

| Part Number | DF57-4P-1.2V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 1.2MM 4POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5758 pcs | Data sheet | 1.DF57-4P-1.2V(21).pdf2.DF57-4P-1.2V(21).pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Unshrouded |
| Series | DF57 | Row Spacing - Mating | - |
| Pitch - Mating | 0.047" (1.20mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | DF574P12V21 H11897TR |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.055" (1.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Swing Lock | Detailed Description | Connector Header Surface Mount 4 position 0.047" (1.20mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
