Hirose

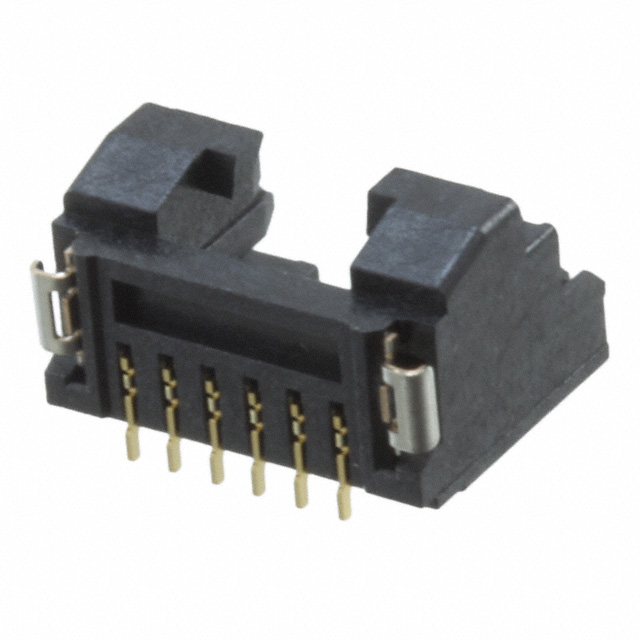

| Part Number | DF50A-6P-1V(51) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 6POS 1MM SMD AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 142941 pcs | Data sheet | 1.DF50A-6P-1V(51).pdf2.DF50A-6P-1V(51).pdf3.DF50A-6P-1V(51).pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DF50 | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | H12085CT |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.35mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester | Insulation Height | 0.278" (7.06mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 6 position 0.039" (1.00mm) | Current Rating | 1A |
| Contact Type | Outer Shroud Contact | Contact Shape | - |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
