Hirose

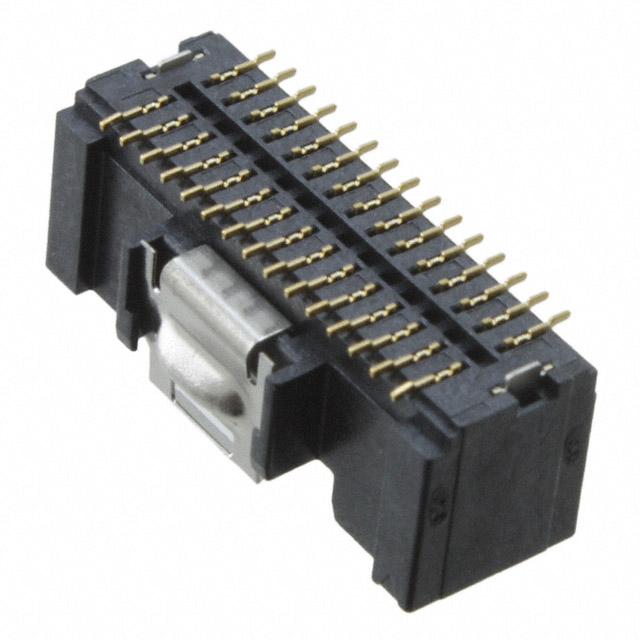

| Part Number | DF50-30DP-1V(52) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 30POS 1MM SMD AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104684 pcs | Data sheet | 1.DF50-30DP-1V(52).pdf2.DF50-30DP-1V(52).pdf3.DF50-30DP-1V(52).pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DF50 | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | DF50-30DP-1V(52)-ND H126067TR |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.35mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.278" (7.06mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Surface Mount 30 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Outer Shroud Contact |
| Contact Shape | - | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
