Hirose

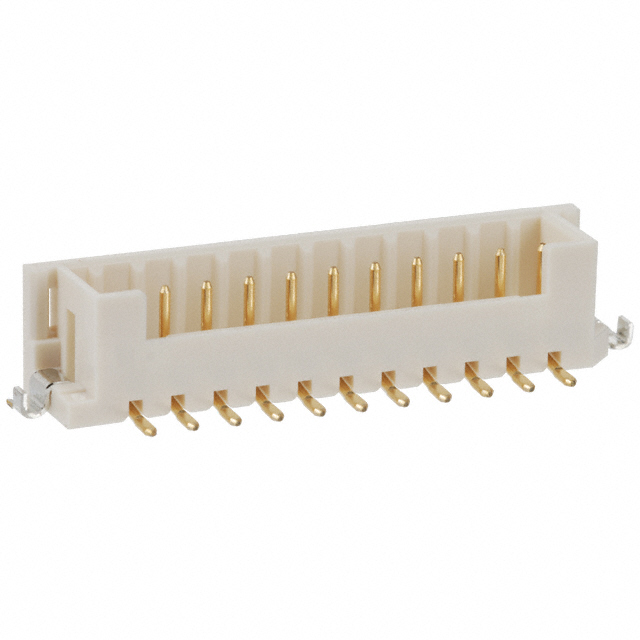

| Part Number | DF3E-12P-2V(50) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 12POS 2MM VERT GOLD | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 69511 pcs | Data sheet | DF3E-12P-2V(50).pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | DF3 | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 543-0367-0-50 H125349-5 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.232" (5.90mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 12 position 0.079" (2.00mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
