Hirose

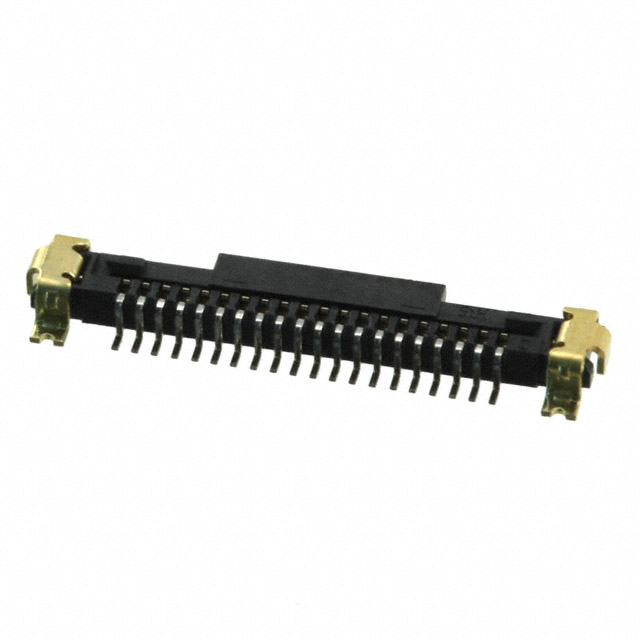

| Part Number | DF36-20S-0.4V(52) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 0.4MM 20POS AU SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156168 pcs | Data sheet | 1.DF36-20S-0.4V(52).pdf2.DF36-20S-0.4V(52).pdf3.DF36-20S-0.4V(52).pdf |
| Voltage Rating | 30VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | DF36 |
| Row Spacing - Mating | - | Pitch - Mating | 0.016" (0.40mm) |
| Packaging | Tape & Reel (TR) | Other Names | DF3620S04V52 H11976TR |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 20 Position Receptacle Connector 0.016" (0.40mm) Surface Mount Gold | Current Rating | Varies by Wire Gauge |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 3.90µin (0.099µm) | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
