Hirose

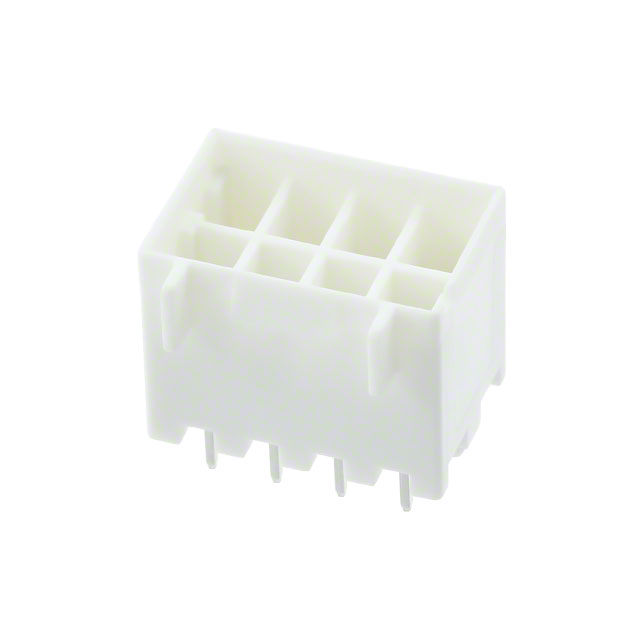

| Part Number | DF33C-8DP-3.3DSA(24) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 3.3MM PCB VERT 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 195517 pcs | Data sheet | DF33C-8DP-3.3DSA(24).pdf |
| Voltage Rating | 500V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | EnerBee™ DF33C | Row Spacing - Mating | 0.228" (5.80mm) |
| Pitch - Mating | 0.130" (3.30mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | H122468 |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 17.6mm |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.453" (11.50mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 8 position 0.130" (3.30mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
