Hirose
| Part Number | DF3-9S-2DSA(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 9POS 2MM VERT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66418 pcs | Data sheet | 1.DF3-9S-2DSA(55).pdf2.DF3-9S-2DSA(55).pdf3.DF3-9S-2DSA(55).pdf |
| Voltage Rating | 30VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | DF3 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | *DF3-9S-2DSA(55) HR2051 |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 6.6mm, 7.5mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.232" (5.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |

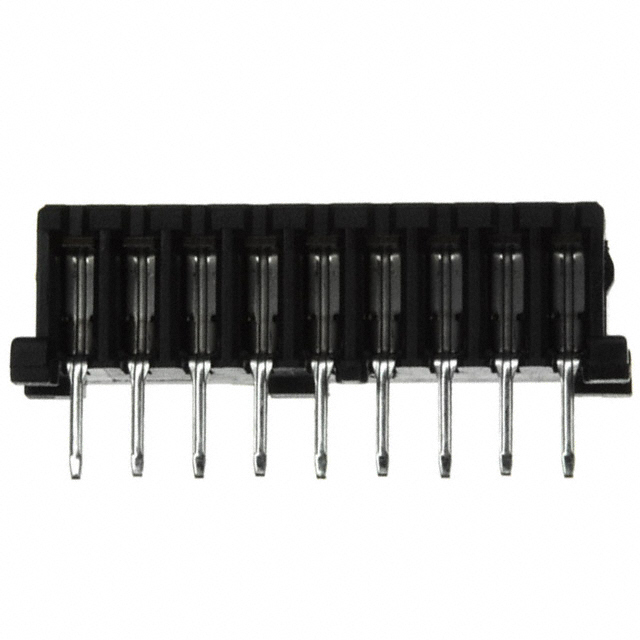

| Detailed Description | 9 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
