Hirose

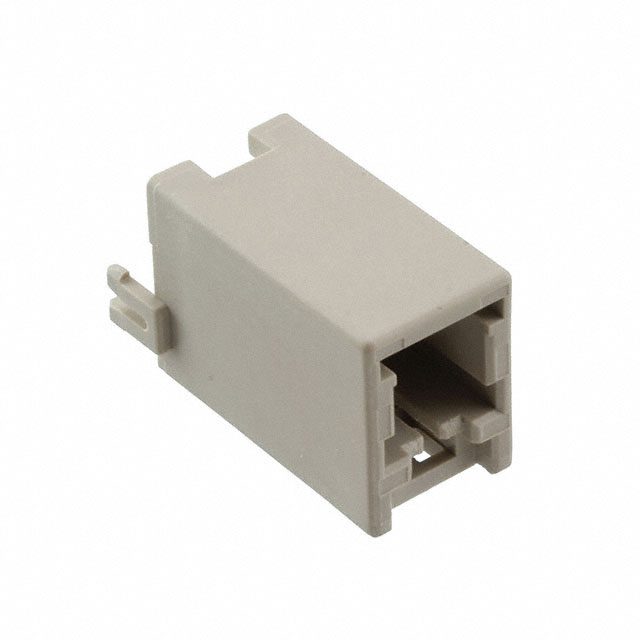

| Part Number | DF22-1P-7.92DSA(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 1POS 7.92MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125452 pcs | Data sheet | DF22-1P-7.92DSA(05).pdf |
| Voltage Rating | 1000V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | EnerBee™ DF22 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 680-1013-5-05 DF22-1P-7.92DSA(05)-ND H123124 |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 25.7mm, 28.7mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.713" (18.10mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 1 position | Current Rating | 30A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.146" (3.70mm) |
| Contact Length - Mating | 0.354" (9.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Tin-Copper | Connector Type | Header |
| Applications | - |
