Hirose

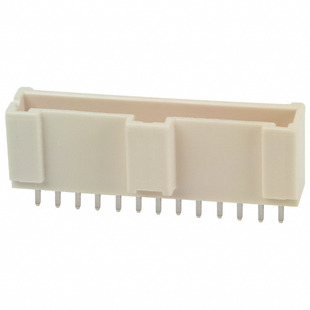

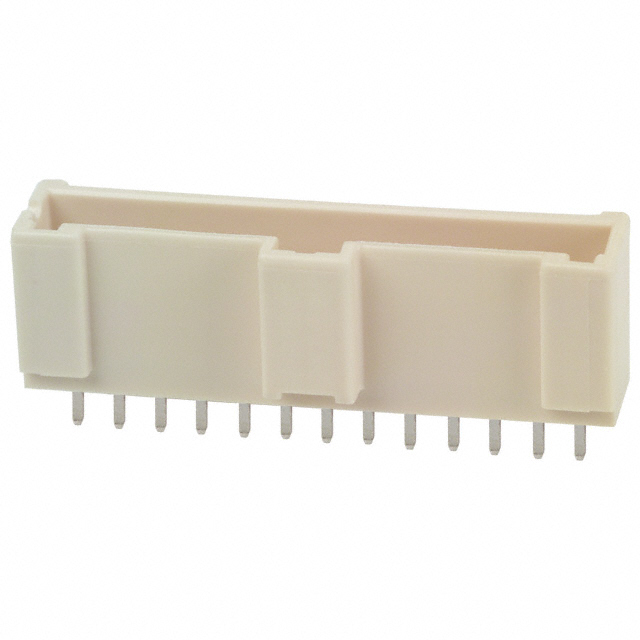

| Part Number | DF1EC-13P-2.5DSA(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 13POS 2.5MM STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86010 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DF1E | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | *DF1EC-13P-2.5DSA(05) H11084 |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 13 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 14.3mm, 15.8mm, 19.8mm |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.425" (10.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 13 position 0.098" (2.50mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.142" (3.60mm) |
| Contact Length - Mating | 0.177" (4.50mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
