DF19-14P-1V(56)

Hirose

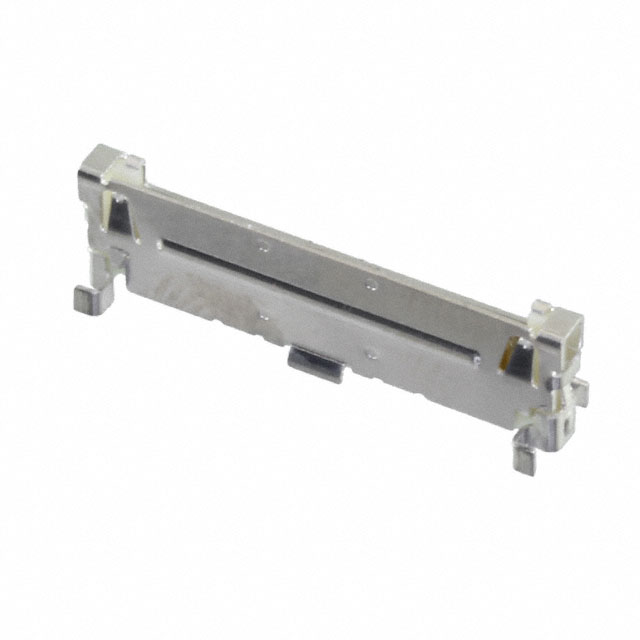

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DF19-14P-1V(56)
Manufacturer/Brand:	Hirose
Product description	CONN RECEPT 14POS 1MM
Datasheets:	1.DF19-14P-1V(56).pdf 2.DF19-14P-1V(56).pdf 3.DF19-14P-1V(56).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28209 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28209 pcs

Reference Price (In US Dollars)

1 pcs: $1.34

10 pcs: $1.287

100 pcs: $1.073

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.34

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DF19-14P-1V(56)

Part Number	DF19-14P-1V(56)	Manufacturer	Hirose
Description	CONN RECEPT 14POS 1MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28209 pcs	Data sheet	1.DF19-14P-1V(56).pdf 2.DF19-14P-1V(56).pdf 3.DF19-14P-1V(56).pdf
Voltage Rating	100V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	DF19	Row Spacing - Mating	-
Pitch - Mating	0.039" (1.00mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	H124586CT
Operating Temperature	-35°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.7mm
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.206" (5.23mm)
Insulation Color	Beige	Ingress Protection	-
Features	Pick and Place, Solder Retention	Fastening Type	Friction Lock
Detailed Description	Connector Header Surface Mount 14 position 0.039" (1.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	-
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin-Copper
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	-
