DF14-4P-1.25H(56)

Hirose

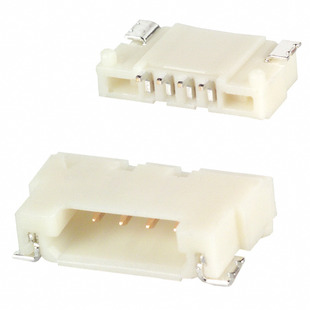

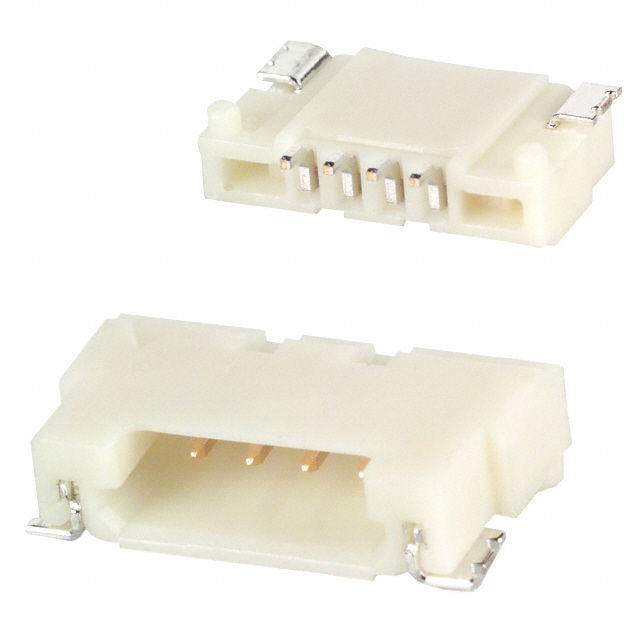

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DF14-4P-1.25H(56)
Manufacturer/Brand:	Hirose
Product description	CONN HDR 4POS 1.25MM R/A SMD
Datasheets:	1.DF14-4P-1.25H(56).pdf 2.DF14-4P-1.25H(56).pdf 3.DF14-4P-1.25H(56).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62937 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62937 pcs

Reference Price (In US Dollars)

1 pcs: $0.484

10 pcs: $0.426

100 pcs: $0.367

500 pcs: $0.30

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.484

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DF14-4P-1.25H(56)

Part Number	DF14-4P-1.25H(56)	Manufacturer	Hirose
Description	CONN HDR 4POS 1.25MM R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62937 pcs	Data sheet	1.DF14-4P-1.25H(56).pdf 2.DF14-4P-1.25H(56).pdf 3.DF14-4P-1.25H(56).pdf
Voltage Rating	150V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	DF14	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	H126012CT
Operating Temperature	-35°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.098" (2.50mm)
Insulation Color	Beige	Ingress Protection	-
Features	Board Guide, Solder Retention	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)	Current Rating	1A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	0.086" (2.20mm)	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	3.90µin (0.099µm)	Contact Finish - Post	Tin-Copper
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
