Hirose

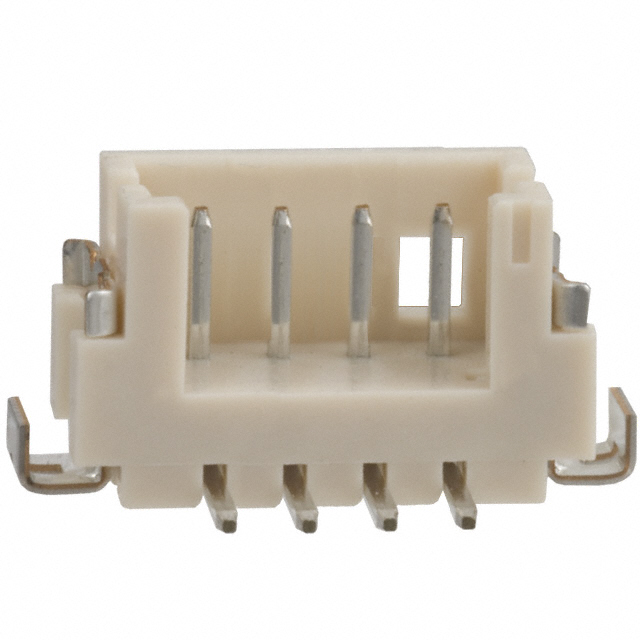

| Part Number | DF13C-4P-1.25V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 4POS 1.25MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 335672 pcs | Data sheet | 1.DF13C-4P-1.25V(21).pdf2.DF13C-4P-1.25V(21).pdf3.DF13C-4P-1.25V(21).pdf |
| Voltage Rating | 150V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 3 Wall |
| Series | DF13 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.8mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.189" (4.80mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 4 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
