Hirose

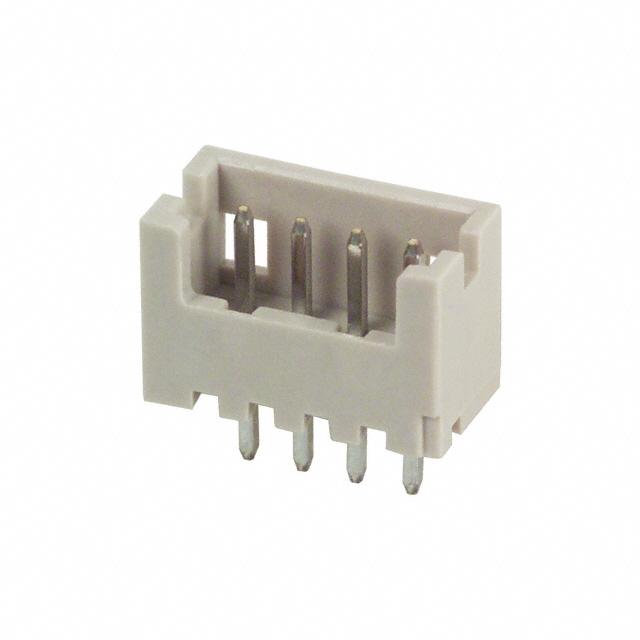

| Part Number | DF13-4P-1.25DSA | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 4POS 1.25MM STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 196765 pcs | Data sheet | 1.DF13-4P-1.25DSA.pdf2.DF13-4P-1.25DSA.pdf3.DF13-4P-1.25DSA.pdf |
| Voltage Rating | 150V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DF13 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | *DF13-4P-1.25DSA DF134P125DSA H2193 |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.3mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.169" (4.30mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 4 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.091" (2.30mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
