Hirose

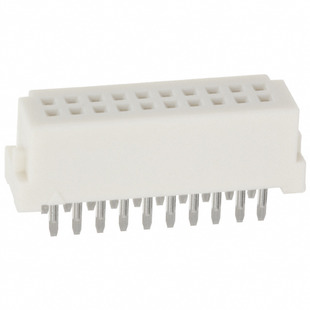

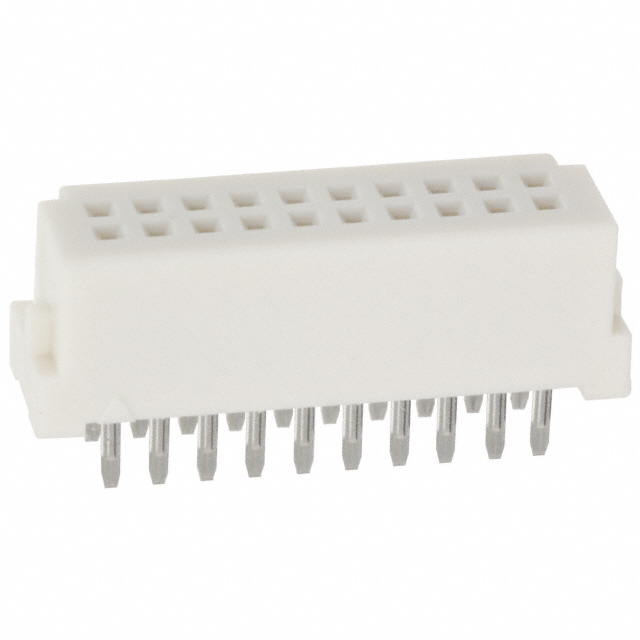

| Part Number | DF13-20DS-1.25DSA(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 20POS 1.25MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4884 pcs | Data sheet | DF13-20DS-1.25DSA(55).pdf |
| Voltage Rating | 150VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | DF13 |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Other Names | *DF13-20DS-1.25DSA(55) DF1320DS125DSA55 H10167 |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 6.8mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | Friction Lock | Detailed Description | 20 Position Receptacle Connector 0.049" (1.25mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.079" (2.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
