Hirose

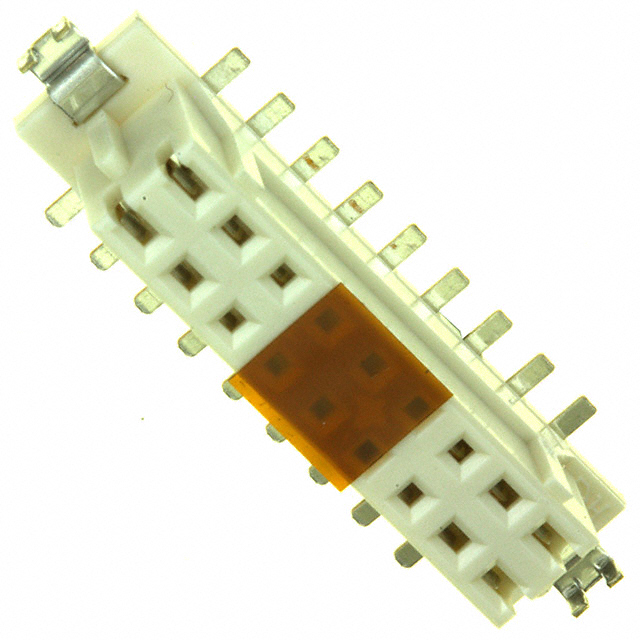

| Part Number | DF11Z-18DS-2V(22) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 18POS 2MM SMD TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105465 pcs | Data sheet | DF11Z-18DS-2V(22).pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board or Cable | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Other Names | DF11Z18DS2V22 H10204TR |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 18 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.55mm, 8.2mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.234" (5.95mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 18 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Tin | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | General Purpose |
