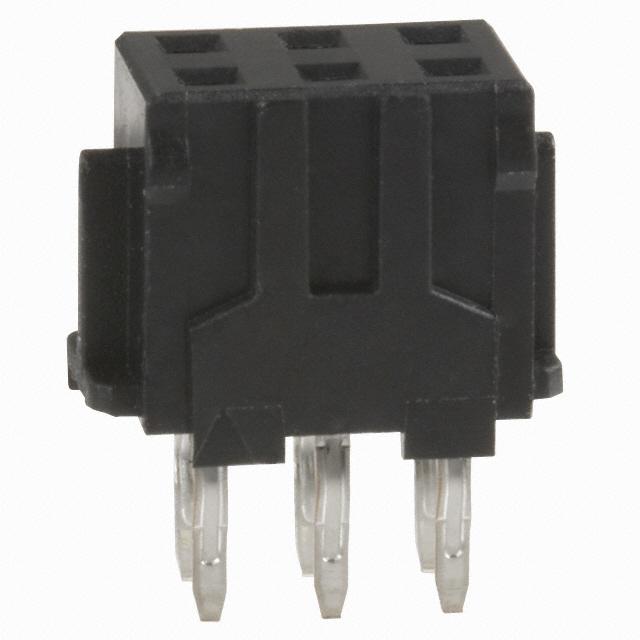

Hirose
| Part Number | DF11-6DS-2DSA(01) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 6POS 2MM PCB GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4750 pcs | Data sheet | DF11-6DS-2DSA(01).pdf |
| Voltage Rating | 250V | Termination | Press-Fit, Solder |
| Style | Board to Board or Cable | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | *DF11-6DS-2DSA(01) H2820 |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.8mm, 8.45mm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.244" (6.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | 6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Nickel |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
