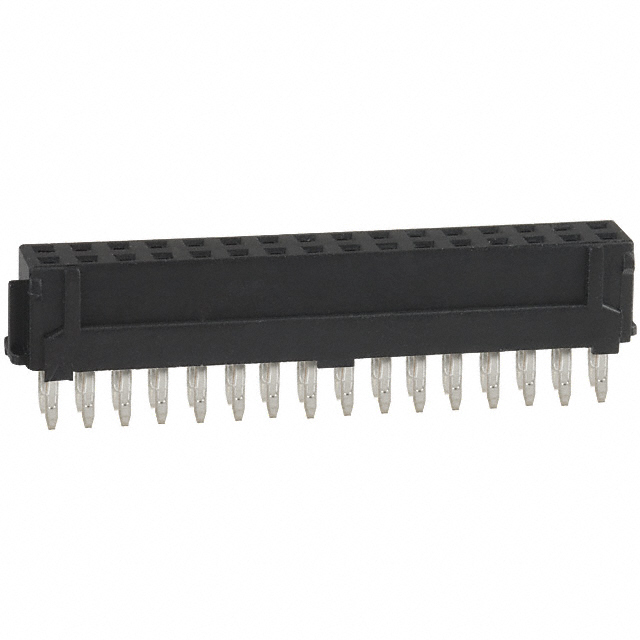

Hirose
| Part Number | DF11-32DS-2DSA(06) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 32POS 2MM PCB GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26627 pcs | Data sheet | 1.DF11-32DS-2DSA(06).pdf2.DF11-32DS-2DSA(06).pdf3.DF11-32DS-2DSA(06).pdf |
| Voltage Rating | 250V | Termination | Press-Fit, Solder |
| Style | Board to Board or Cable | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | *DF11-32DS-2DSA(06) DF1132DS2DSA06 H10196 |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 32 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.8mm, 8.45mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.244" (6.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | 32 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
