Hirose

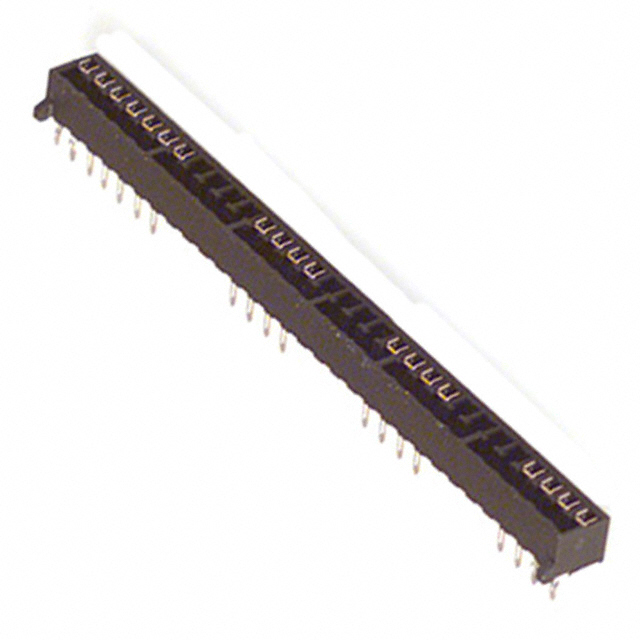

| Part Number | DF10-31S-2DSA(59) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONNECTOR 31 PIN FEMALE STRAIGHT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2795 pcs | Data sheet | DF10-31S-2DSA(59).pdf |
| Voltage Rating | 250VAC | Termination | Kinked Pin, Solder |
| Style | - | Series | DF10 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | *DF10-31S-2DSA(59) DF10-31S-2DSA DF10-31S-2DSA59 H2151 |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 31 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.157" (4.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 31 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.110" (2.79mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
