Hirose

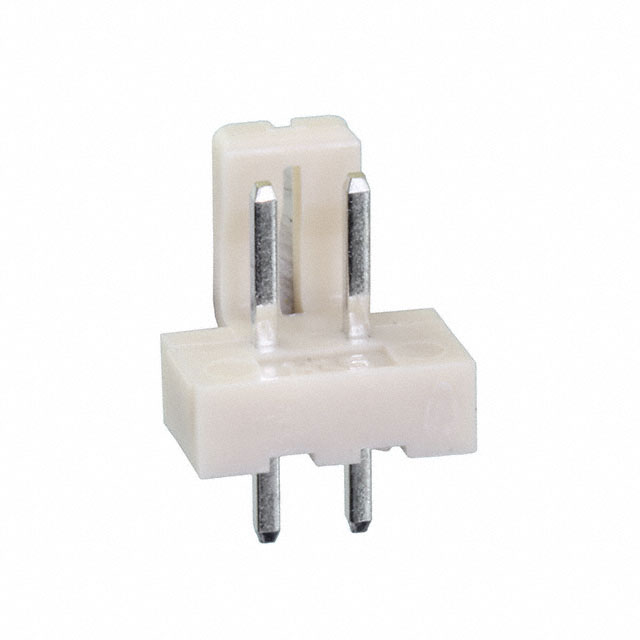

| Part Number | DF1-2P-2.5DSA(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 2POS T/H TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 334208 pcs | Data sheet | 1.DF1-2P-2.5DSA(05).pdf2.DF1-2P-2.5DSA(05).pdf3.DF1-2P-2.5DSA(05).pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 1 Wall |
| Series | DF1 | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Overall Contact Length | 0.394" (10.00mm) | Other Names | DF1-2P-2.5DSA(05)-ND H123117 |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.295" (7.50mm) |
| Insulation Color | Brown | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole 2 position 0.098" (2.50mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.177" (4.50mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
