Hirose

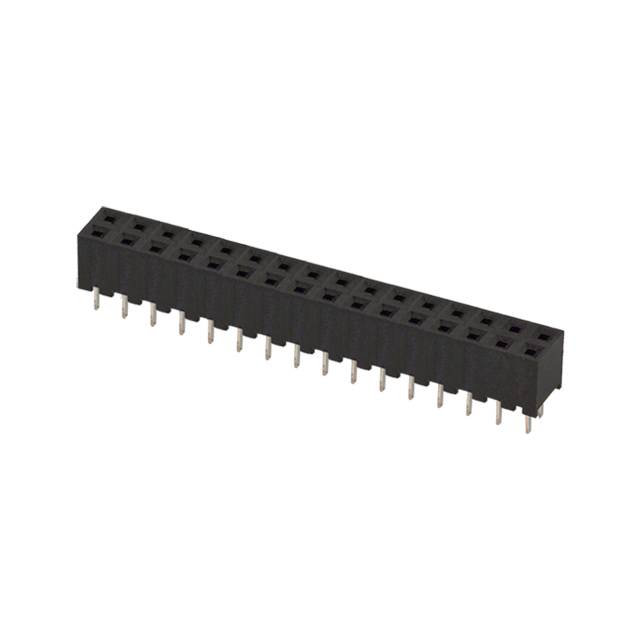

| Part Number | A3C-32DA-2DSE | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 32POS 2MM GOLD DIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6102 pcs | Data sheet | A3C-32DA-2DSE.pdf |
| Voltage Rating | 200VAC | Termination | Solder |
| Style | Board to Board or Cable | Series | A3 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | *A3C-32DA-2DSE H1876 |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 32 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.1mm, 6mm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.165" (4.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 32 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.050" (1.27mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Telecommunications |
