S9101-46R

Harwin

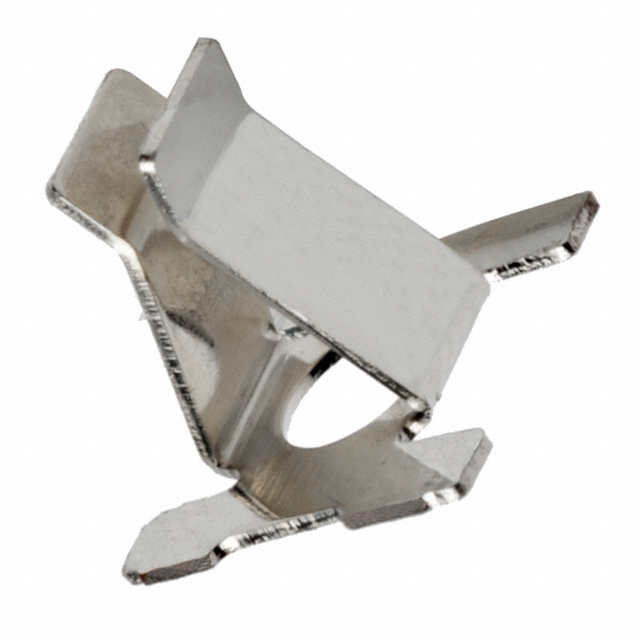

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S9101-46R
Manufacturer/Brand:	Harwin
Product description	CONN PIN RCPT .043-.071 SMD
Datasheets:	1.S9101-46R.pdf 2.S9101-46R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	874805 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 874805 pcs

Reference Price (In US Dollars)

800 pcs: $0.043

1600 pcs: $0.038

2400 pcs: $0.037

5600 pcs: $0.036

8000 pcs: $0.032

20000 pcs: $0.031

40000 pcs: $0.03

80000 pcs: $0.029

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.043

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S9101-46R

Part Number	S9101-46R	Manufacturer	Harwin
Description	CONN PIN RCPT .043-.071 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	874805 pcs	Data sheet	1.S9101-46R.pdf 2.S9101-46R.pdf
Termination	Surface Mount	Tail Type	Clip
Tail Diameter	-	Socket Depth	0.138" (3.51mm)
Series	EZ-Board	Pin Hole Diameter	0.079" (2.00mm)
Packaging	Tape & Reel (TR)	Other Names	952-1736-2 S910146R
Operating Temperature	-40°C ~ 105°C	Mounting Hole Diameter	0.158" (4.01mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Length - Overall	0.177" (4.50mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	2.80N ~ 4.50N	Flange Diameter	-
Features	-	Detailed Description	Pin Receptacle Connector 0.043" ~ 0.071" (1.10mm ~ 1.80mm) Clip Surface Mount
Contact Material	Phosphor Bronze	Contact Finish Thickness	157.5µin (4.00µm)
Contact Finish	Tin	Board Thickness	-
Accepts Square Pin Size	0.043" ~ 0.055" (1.10mm ~ 1.40mm)	Accepts Pin Diameter	0.043" ~ 0.071" (1.10mm ~ 1.80mm)
