M83-LMT1M2N27-0000-000

Harwin

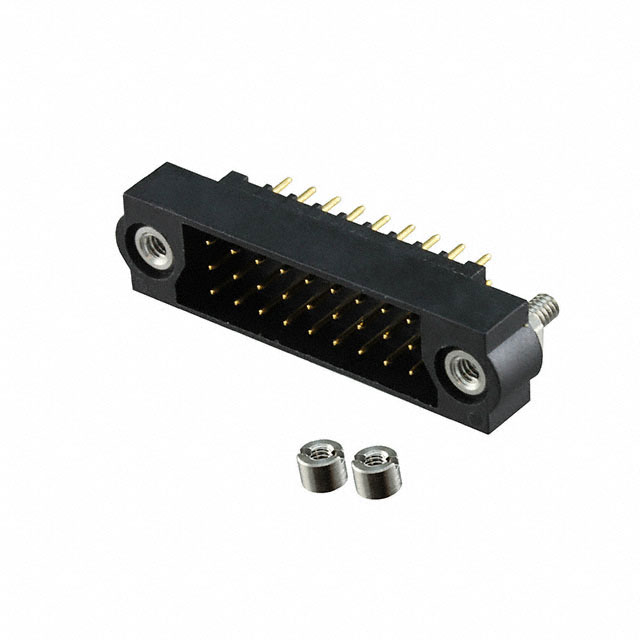

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M83-LMT1M2N27-0000-000
Manufacturer/Brand:	Harwin
Product description	3 ROW M/T M VERT J/S 27 WAY
Datasheets:	1.M83-LMT1M2N27-0000-000.pdf 2.M83-LMT1M2N27-0000-000.pdf 3.M83-LMT1M2N27-0000-000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5951 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5951 pcs

Reference Price (In US Dollars)

1 pcs: $4.953

24 pcs: $4.501

48 pcs: $4.389

72 pcs: $4.051

120 pcs: $3.826

264 pcs: $3.488

504 pcs: $3.263

1008 pcs: $2.993

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.953

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M83-LMT1M2N27-0000-000

Part Number	M83-LMT1M2N27-0000-000	Manufacturer	Harwin
Description	3 ROW M/T M VERT J/S 27 WAY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5951 pcs	Data sheet	1.M83-LMT1M2N27-0000-000.pdf 2.M83-LMT1M2N27-0000-000.pdf 3.M83-LMT1M2N27-0000-000.pdf
Voltage Rating	120V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Datamate J-Tek	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	952-3001 M83-LMT1M2N27-0000-000-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	27
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	10.65mm, 12.85mm
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Insulation Height	0.240" (6.10mm)
Insulation Color	Black	Ingress Protection	-
Features	Mating Flange, Mounting Flange, Mounting Hardware	Fastening Type	Threaded
Detailed Description	Connector Header Through Hole 27 position 0.079" (2.00mm)	Current Rating	2.2A per Contact
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Phosphor Bronze	Contact Length - Post	0.126" (3.20mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	29.5µin (0.75µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
