M83-LFT1F2N36-0000-000

Harwin

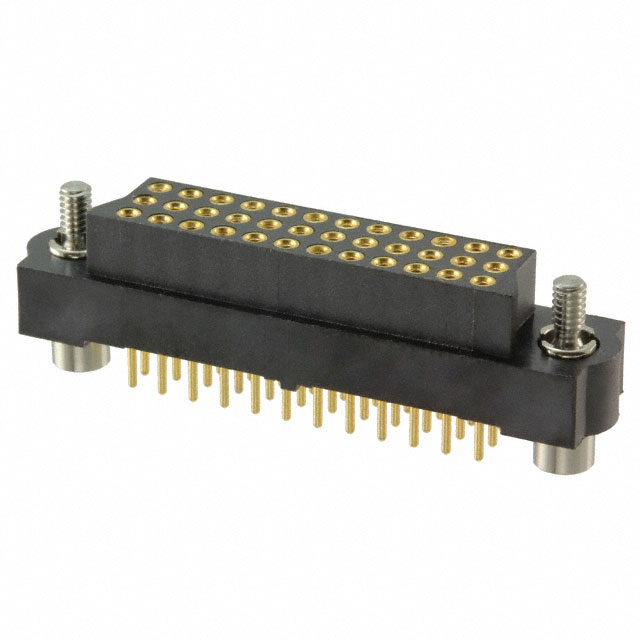

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M83-LFT1F2N36-0000-000
Manufacturer/Brand:	Harwin
Product description	3 ROW FEMALE VERT PC TAIL 36 W
Datasheets:	1.M83-LFT1F2N36-0000-000.pdf 2.M83-LFT1F2N36-0000-000.pdf 3.M83-LFT1F2N36-0000-000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3874 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3874 pcs

Reference Price (In US Dollars)

1 pcs: $9.735

10 pcs: $8.79

30 pcs: $8.421

60 pcs: $7.895

120 pcs: $7.632

270 pcs: $7.211

510 pcs: $7.00

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$9.735

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M83-LFT1F2N36-0000-000

Part Number	M83-LFT1F2N36-0000-000	Manufacturer	Harwin
Description	3 ROW FEMALE VERT PC TAIL 36 W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3874 pcs	Data sheet	1.M83-LFT1F2N36-0000-000.pdf 2.M83-LFT1F2N36-0000-000.pdf 3.M83-LFT1F2N36-0000-000.pdf
Voltage Rating	120V	Termination	Solder
Style	Board to Board or Cable	Series	Datamate J-Tek
Row Spacing - Mating	0.079" (2.00mm)	Pitch - Mating	0.079" (2.00mm)
Packaging	Tray	Other Names	952-2994 M83-LFT1F2N36-0000-000-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	36
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	10.65mm
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Insulation Height	0.330" (8.38mm)
Insulation Color	Black	Ingress Protection	-
Features	Jackscrews, Mating Flange, Mounting Flange	Fastening Type	Screw Lock
Detailed Description	36 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold	Current Rating	-
Contact Type	Female Socket	Contact Shape	Circular
Contact Material	Beryllium Copper	Contact Length - Post	0.118" (3.00mm)
Contact Finish Thickness - Post	10.0µin (0.25µm)	Contact Finish Thickness - Mating	12.0µin (0.30µm)
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	Automotive, General Purpose, Military
