M80-MH313M5-04

Harwin

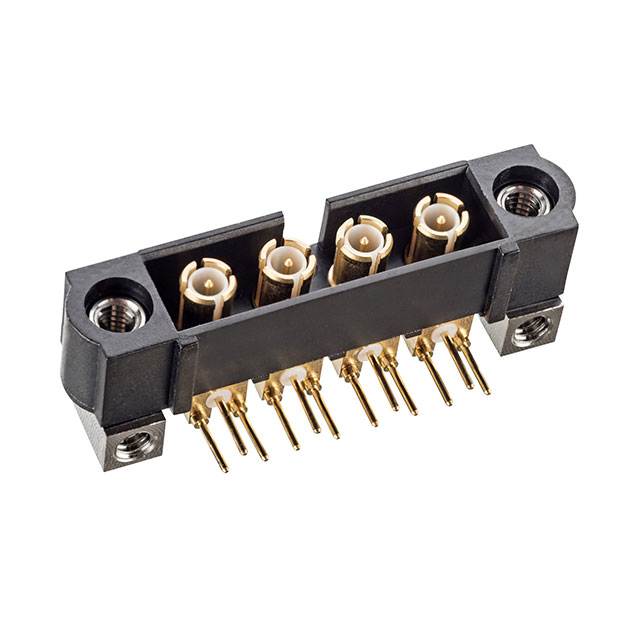

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-MH313M5-04
Manufacturer/Brand:	Harwin
Product description	CONN HDR COAX 6GHZ 4MM R/A 4POS
Datasheets:	1.M80-MH313M5-04.pdf 2.M80-MH313M5-04.pdf 3.M80-MH313M5-04.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2181 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2181 pcs

Reference Price (In US Dollars)

1 pcs: $16.725

10 pcs: $15.741

100 pcs: $13.478

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$16.725

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-MH313M5-04

Part Number	M80-MH313M5-04	Manufacturer	Harwin
Description	CONN HDR COAX 6GHZ 4MM R/A 4POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2181 pcs	Data sheet	1.M80-MH313M5-04.pdf 2.M80-MH313M5-04.pdf 3.M80-MH313M5-04.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Datamate Coax	Row Spacing - Mating	-
Pitch - Mating	0.157" (4.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-3113
Operating Temperature	-55°C ~ 125°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4 (Coax)
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Insulation Height	0.220" (5.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Mating Flange, Mounting Flange	Fastening Type	Threaded
Detailed Description	Connector Header Through Hole, Right Angle 4 (Coax) position 0.157" (4.00mm)	Current Rating	-
Contact Type	Male Pin, Coaxial	Contact Shape	Circular
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
