M80-8541442

Harwin

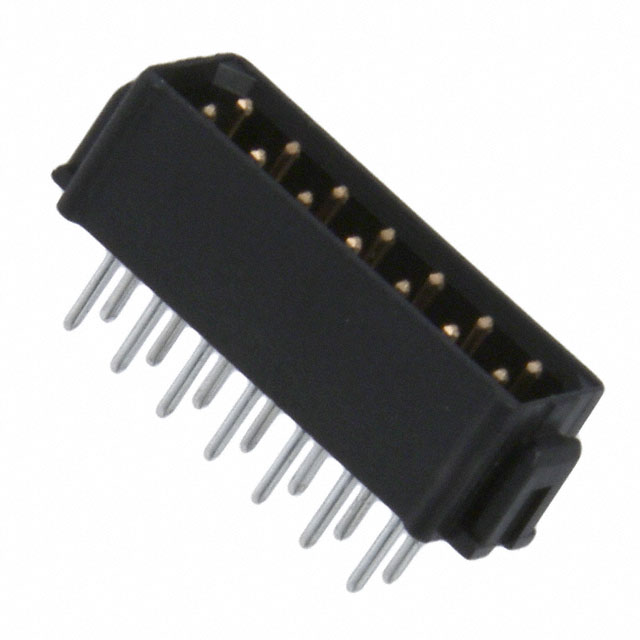

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-8541442
Manufacturer/Brand:	Harwin
Product description	CONN HDR 2MM VERT DUAL 14POS
Datasheets:	1.M80-8541442.pdf 2.M80-8541442.pdf 3.M80-8541442.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30806 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 30806 pcs

Reference Price (In US Dollars)

1 pcs: $1.076

14 pcs: $1.032

112 pcs: $0.86

504 pcs: $0.731

1008 pcs: $0.623

5012 pcs: $0.559

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.076

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-8541442

Part Number	M80-8541442	Manufacturer	Harwin
Description	CONN HDR 2MM VERT DUAL 14POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30806 pcs	Data sheet	1.M80-8541442.pdf 2.M80-8541442.pdf 3.M80-8541442.pdf
Voltage Rating	800V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Datamate L-Tek	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-1088-5 M808541442
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.23mm, 7.85mm, 10.2mm, 13.51mm
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6	Insulation Height	0.219" (5.56mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 14 position 0.079" (2.00mm)	Current Rating	2.2A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Phosphor Bronze	Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	29.5µin (0.75µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Plug
Applications	-
