Harwin

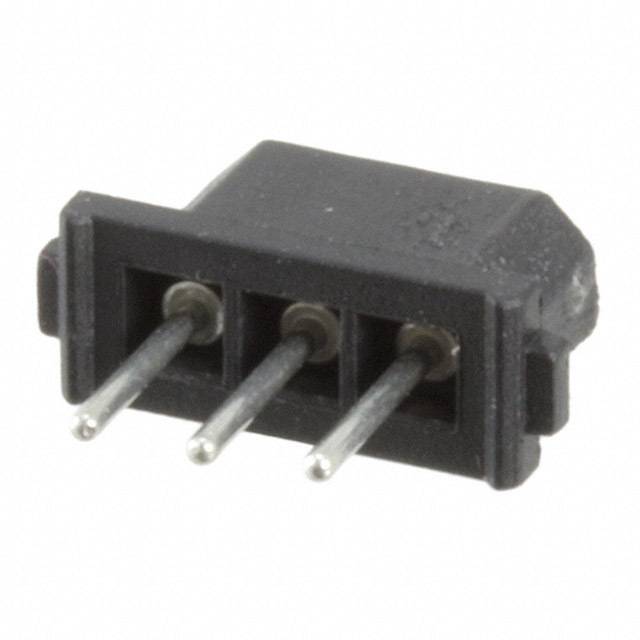

| Part Number | M80-8400342 | Manufacturer | Harwin |
|---|---|---|---|
| Description | SIL FEMALE VERT PC TAIL CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41157 pcs | Data sheet | 1.M80-8400342.pdf2.M80-8400342.pdf3.M80-8400342.pdf |
| Voltage Rating | 800V | Termination | Solder |
| Style | Board to Board or Cable | Series | Datamate L-Tek |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 952-2237 M808400342 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.23mm, 7.83mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.202" (5.14mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | 3 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | 137.8µin (3.50µm) | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Military |
