M80-8151822

Harwin

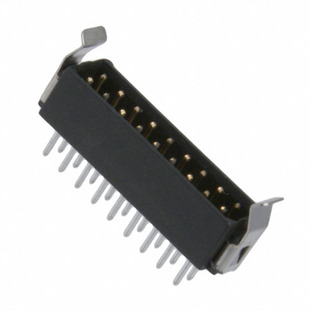

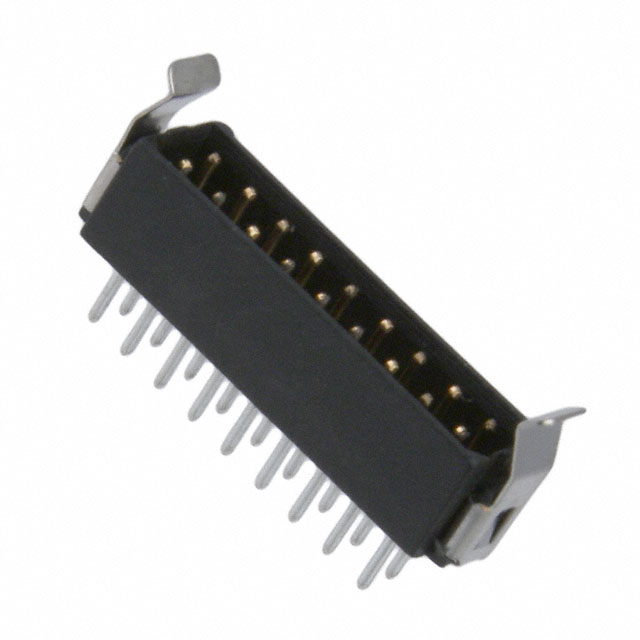

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-8151822
Manufacturer/Brand:	Harwin
Product description	CONN HDR 2MM DUAL W/LATCH 18POS
Datasheets:	1.M80-8151822.pdf 2.M80-8151822.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	20634 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20634 pcs

Reference Price (In US Dollars)

1 pcs: $1.788

11 pcs: $1.718

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.788

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-8151822

Part Number	M80-8151822	Manufacturer	Harwin
Description	CONN HDR 2MM DUAL W/LATCH 18POS	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	20634 pcs	Data sheet	1.M80-8151822.pdf 2.M80-8151822.pdf
Voltage Rating	800V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Datamate L-Tek	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-2399-5 B5743-218-M-T-R M80-8151822-ND M808151822
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	18
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.23mm, 7.85mm, 10.2mm, 13.51mm
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.219" (5.56mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 18 position 0.079" (2.00mm)
Current Rating	2.2A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	0.118" (3.00mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	118.1µin (3.00µm)	Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Plug	Applications	-
