Harwin

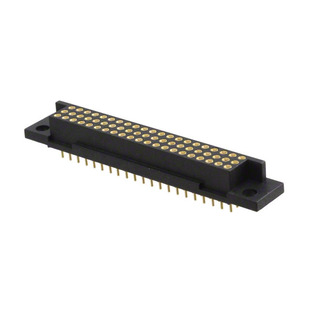

| Part Number | M80-7076305 | Manufacturer | Harwin |
|---|---|---|---|
| Description | DATAMATE J-TEK 3-ROW FEMALE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2687 pcs | Data sheet | 1.M80-7076305.pdf2.M80-7076305.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Other Names | 952-2388 M80-7076305-ND M807076305 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 63 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.247" (6.28mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Mating Flange | Fastening Type | - |
| Detailed Description | 63 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
