Harwin

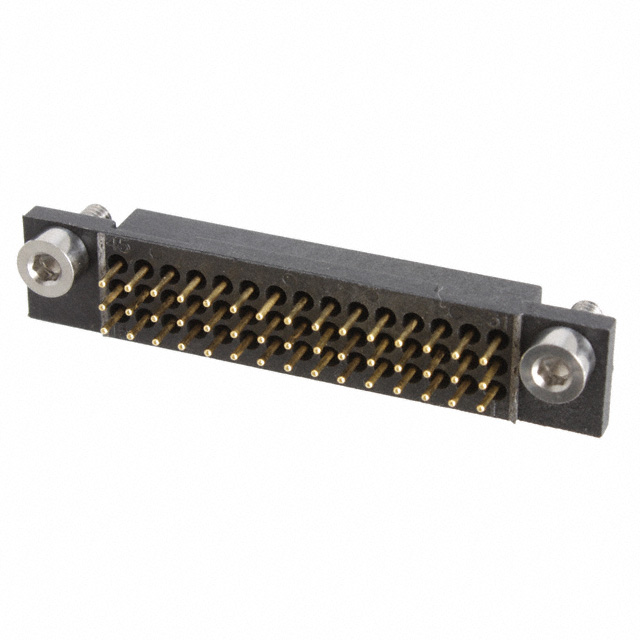

| Part Number | M80-7044505 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN 45 POS F 2MM SOLDER ST TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3172 pcs | Data sheet | 1.M80-7044505.pdf2.M80-7044505.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | Datamate J-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Other Names | 952-2386 M80-7044505-ND M807044505 Q5943209A |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 45 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.247" (6.28mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Jackscrews, Mating Flange, Mounting Flange | Fastening Type | Screw Lock |
| Detailed Description | 45 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
