M80-6660442

Harwin

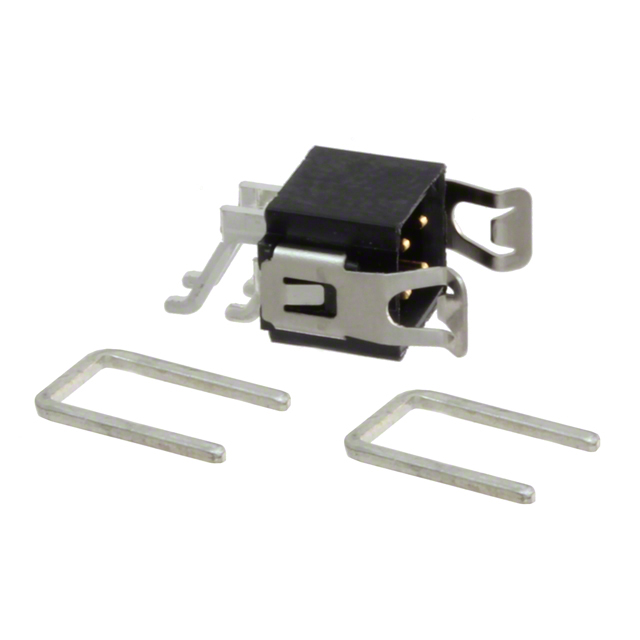

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-6660442
Manufacturer/Brand:	Harwin
Product description	DIL MALE HORIZ SMT CONNECTOR
Datasheets:	1.M80-6660442.pdf 2.M80-6660442.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19126 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19126 pcs

Reference Price (In US Dollars)

1 pcs: $1.943

32 pcs: $1.709

128 pcs: $1.553

512 pcs: $1.32

1024 pcs: $1.126

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.943

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-6660442

Part Number	M80-6660442	Manufacturer	Harwin
Description	DIL MALE HORIZ SMT CONNECTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19126 pcs	Data sheet	1.M80-6660442.pdf 2.M80-6660442.pdf
Voltage Rating	800V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Datamate L-Tek	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-2095 M806660442
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Insulation Height	0.235" (5.97mm)
Insulation Color	Black	Ingress Protection	-
Features	Strain Relief Clips	Fastening Type	Latch Lock
Detailed Description	Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)	Current Rating	2.2A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	29.5µin (0.75µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
