Harwin

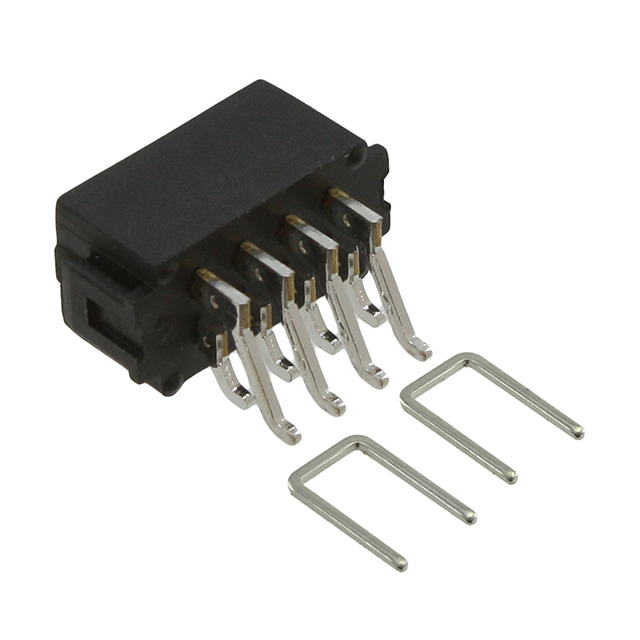

| Part Number | M80-6650842 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 2X4POS DIL MALE SMT HORIZ CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33655 pcs | Data sheet | 1.M80-6650842.pdf2.M80-6650842.pdf3.M80-6650842.pdf |
| Voltage Rating | 800V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Datamate L-Tek | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 952-1923 M806650842 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.235" (5.97mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Strain Relief Clips | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm) | Current Rating | 2.2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Plug |
| Applications | - |
