M80-5T12042MC

Harwin

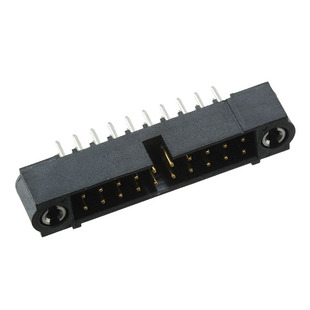

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-5T12042MC
Manufacturer/Brand:	Harwin
Product description	CONN HDR 2MM VERT PCB 20POS
Datasheets:	1.M80-5T12042MC.pdf 2.M80-5T12042MC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13118 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13118 pcs

Reference Price (In US Dollars)

1 pcs: $2.536

16 pcs: $2.431

104 pcs: $2.008

504 pcs: $1.691

1000 pcs: $1.48

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.536

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-5T12042MC

Part Number	M80-5T12042MC	Manufacturer	Harwin
Description	CONN HDR 2MM VERT PCB 20POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13118 pcs	Data sheet	1.M80-5T12042MC.pdf 2.M80-5T12042MC.pdf
Voltage Rating	120V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Datamate J-Tek	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-1282-5 M805T12042MC
Operating Temperature	-55°C ~ 121°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.3mm, 7.7mm, 9.75mm, 10.75mm, 13.35mm, 14.75mm
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Insulation Height	0.220" (5.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot, Mating Flange	Fastening Type	Push-Turn Lock
Detailed Description	Connector Header Through Hole 20 position 0.079" (2.00mm)	Current Rating	2.2A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Phosphor Bronze	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	118.1µin (3.00µm)
Contact Finish Thickness - Mating	29.5µin (0.75µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
