M80-5T10805M2-04-331-00-000

Harwin

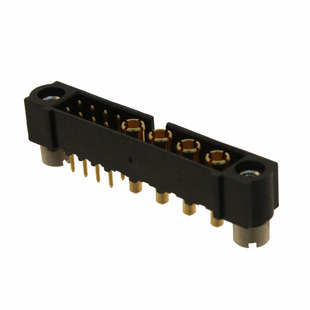

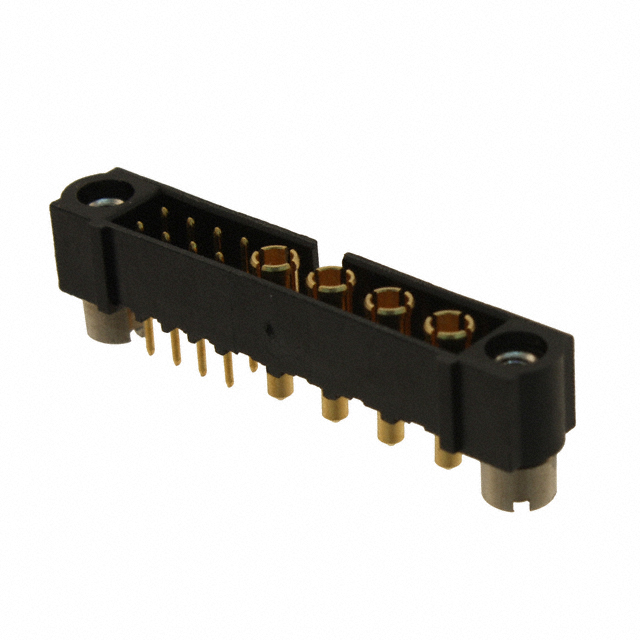

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-5T10805M2-04-331-00-000
Manufacturer/Brand:	Harwin
Product description	CONN HDR MIX-TEK 12POS GOLD
Datasheets:	1.M80-5T10805M2-04-331-00-000.pdf 2.M80-5T10805M2-04-331-00-000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3629 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3629 pcs

Reference Price (In US Dollars)

1 pcs: $10.841

14 pcs: $9.786

105 pcs: $8.497

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$10.841

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-5T10805M2-04-331-00-000

Part Number	M80-5T10805M2-04-331-00-000	Manufacturer	Harwin
Description	CONN HDR MIX-TEK 12POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3629 pcs	Data sheet	1.M80-5T10805M2-04-331-00-000.pdf 2.M80-5T10805M2-04-331-00-000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Datamate Mix-Tek	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-1656 M805T10805M20433100000
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12 (8 + 4 Power)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	7.3mm, 9.75mm
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Insulation Height	0.220" (5.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware	Fastening Type	Threaded
Detailed Description	Connector Header Through Hole 12 (8 + 4 Power) position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	-	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
